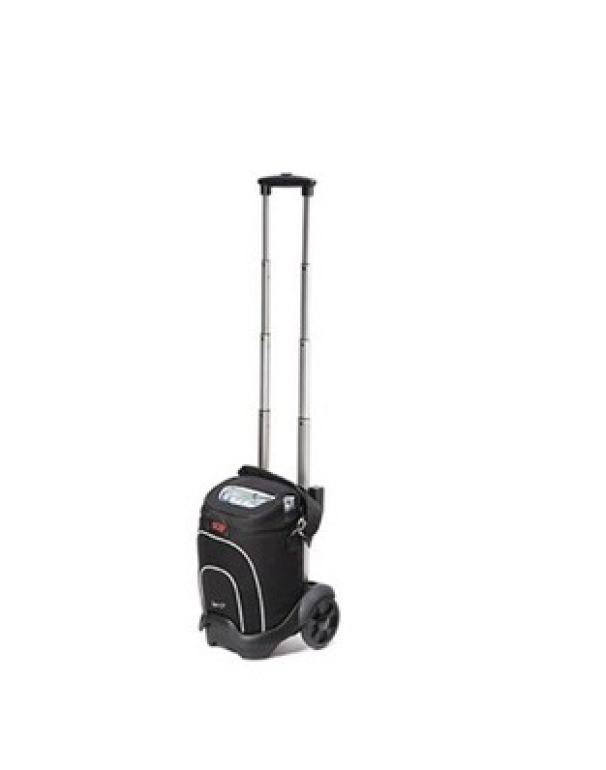

Zen-O Portable Concentrator

• Constructed with high-quality parts and a high-impact resistant design for greater ruggedness
• Comes with two lightweight, compact lithium Ion 12 cell batteries (weight 1.45 lbs each) that are easily accessible and quickly changed
• A carrying case with shoulder strap may also be secured to a mobile cart for easier handling
• An extra battery, cannula, and other accessories can fit in the zippered pouch
• A fold up cart also comes standard with an adjustable handle to meet the needs of the individual patient
• 2 LPM of Oxygen at 18 Breaths per Minute (BPM) while in pulse flow mode.
• RX REQUIRED

Size (WxDxH) 212 mm x 168 mm x 313 mm, (8.3" x 6.6" x 12.3")

Weight 4,66 kg (10.27 lbs) with one 12 cell battery

Power Requirements AC adaptor: 100-240 V AC (+/- 10 %), 50 - 60 Hz in, 24 V, 6.25A out, DC adaptor: 11.5 - 16 V DC in, 19 V, 7.9A out

Purity 87 % - 96 % at all settings

Maximum Oxygen Discharge Pressure 20.5 psi

Inspiratory Trigger Sensitivity -0.12 cm/H2O

Humidity Range 5 % to 93 % +/- 2 % non-condensing

Operating Altitude 0´to 13,000´(0 m to 4,000 m)

Operating Temperature 5°C (41°F) and 40°C (104°F)

Storage Temperature -20°C (-4°F) and 60°C (140°F)

Setting Adjustable in 0.5 increments from 1.0 to 6.0 in pulse mode and from 0.5 to 2.0 in continuous mode

Noise Level 38 dB(A) tested to Prüfmethode 14-1 03/2007
MDS-Hi and 42 dB(A) tested to ISO 3744* *At pulse setting 2.

Alarm Types Low oxygen purity, No breath detected, Low battery and Service required

Battery Duration Up to 4 hours with a single battery or 8 hours
with 2 batteries at 18 BPM* (*At pulse setting 2)
